CONTINUOS BATCH PLANT: FLYWHEEL UPS SYSTEM FOR 2 10 H.P. 480 VOLT 3 PHASE PUMP MOTORS

THE NEXT FEW IMAGES ARE OF CONTROL PANELS FOR A CONTINUOUS BATCH CHEMICAL COMPANY. THEY WERE BUILT TO CONTROL A "FLYWHEEL UPS".

THE UPS KEEPS 2- 480 VOLT 3 PHASE PUMPS RUNNING THROUGH A POWER OUTAGE UNTIL THE EMERGENCY GENERATOR KICKS IN FOR THE PLANT

THIS NEXT PANEL IS THE PLC PANEL. THE PLC IS AN ALLEN BRADLEY MICROLOGIX 1100. THIS PICTURE IS DURING THE PANEL PRODUCTION BEFORE COMPLETION.

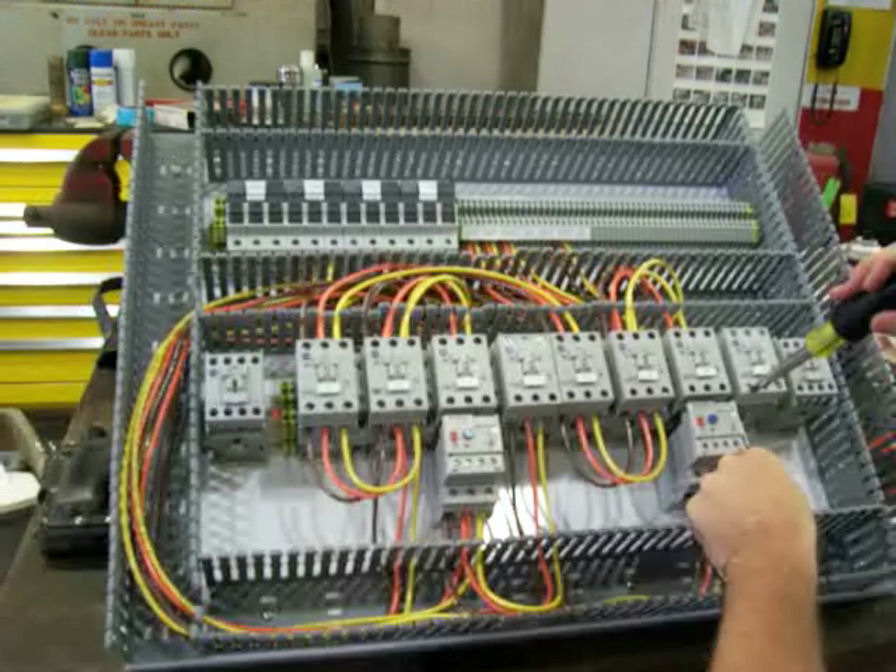

THIS NEXT PANEL IS THE 480 VOLT CONTACTOR PANEL. WE TRY AND KEEP CONTROL AND POWER SEPARATED. AGAIN, THIS IS DURING PANEL PRODUCTION.

THIS IS ANOTHER VIEW OF THE 480 VOLT CONTACTOR PANEL IN PROGRESS

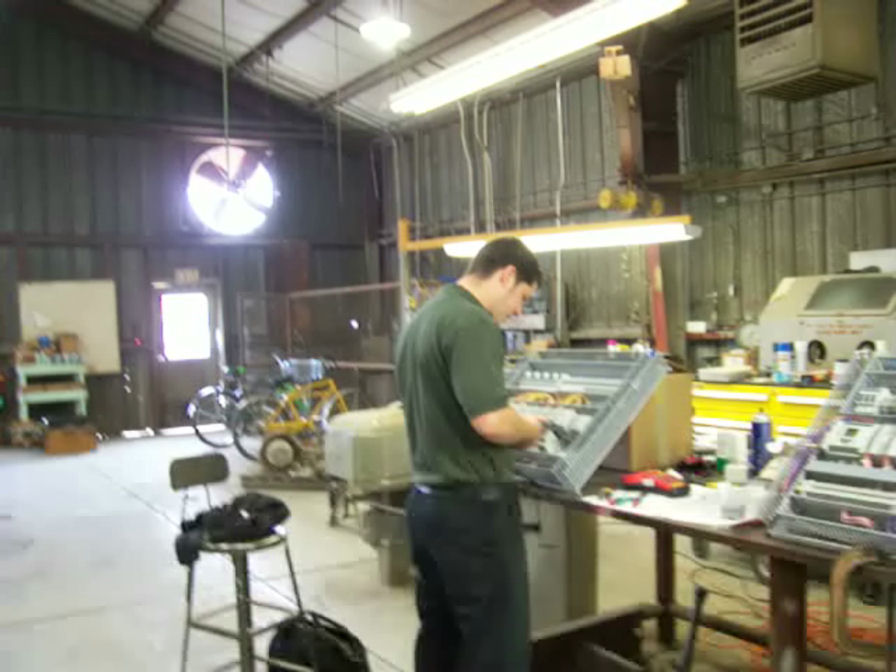

THIS IS BYRON'S SON- DAVID SANDERS- WIRING THE CONTACTOR PANEL

THIS IS BYRON AND DAVID SANDERS AT THE END OF THE DAY APPRECIATING THEIR WORK

THIS IS BYRON AND DAVID SANDERS AT THE END OF THE DAY APPRECIATING THEIR WORK...CONTINUED...

THIS IS THE FINAL BUILD OF THE PLC PANEL AND CONTACTOR PANEL BEFORE INTSTALLATION AND FINAL SYSTEMS INTEGRATION AND DEBUGGING

THE FOLLOWING IMAGES ARE FROM "COMMISSIONING" THE INSTALLATION- WHICH INVOLVES FINAL DE-BUGGING OF THE PROGRAMS AND FINAL TESTING BEFORE STARTUP

HERE IS A PICTURE DAVID TOOK OF ME DURING COMMISSIONING

HERE IS A PICTURE OF ONE OF MY LAPTOPS WHILE DEBUGGING- USING IT TO "FORCE" LOGIC ON AND OFF TO SIMULATE THE PROCESS

HERE IS A SCREEN SHOT OF ALLEN BRADLEY LOGIC- USING RS-LOGIX 500 TO PROGAM THE AB 1100 SERIES PLC
